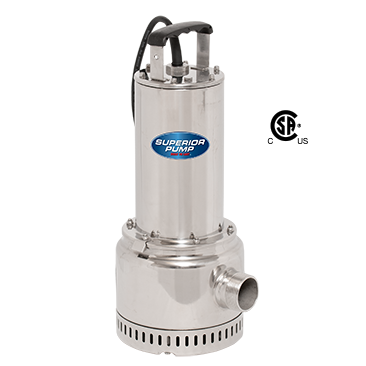

  91197: 1 HP UTILITY
  Stainless Steel Construction


Click on image for high resolution picture
  • Specifications
  • Performance
  • Optional Accessories
  • Manual
Features
• Continuous duty, thermally protected - split capacitor motor
• Pumps will lift water up to 30' of vertical height
• Stainless steel construction
• Stainless intake screen
• 1-1/2” NPT Discharge
• 1-1/2” NPT x 1-1/2” BARB 90° elbow adapter included
• Stainless steel impeller
• Can be used as a automatic pump by adding a float switch (sold separately)
• Integrated heavy duty handle for easy transport
• Large intake screen
• 25' Power supply cord
Technical Specifications
  HP 1
  Amps 11.4
  Construction Stainless Steel
  Discharge Size 1-1/2"
  Discharge Type Side
  Cord Length 25'
  Solids Handling 1/8"
  Impeller Type Stainless Steel
Liquid Temp. Range 32° F - 120° F
Pumps Down To 1" From Surface
Warranty 1 Year

HEAD 0' 5' 10' 15' 20' 25' 30'
GPM 98 83 64 49 31 17 5
GPH 5898 4980 3840 2940 1860 1020 300

Float Switches

Check Valves

Alarms

Lake Screen
Filters

Adapters

Hose Kits




Every Superior Pump comes with a detailed owner’s manual. The manual includes installation instructions, tips on pump maintenance, special warnings as well as warranty information. It is highly recommended that you read and understand the complete manual.

Click here for a copy of the
91197 manual.
