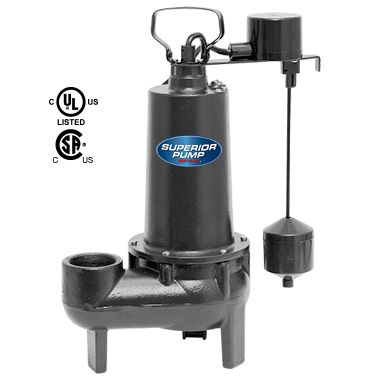

  93525: 1/2 HP SEWAGE
  Cast Iron Construction


Click on image for high resolution picture
  • Specifications
  • Performance
  • Optional Accessories
  • Manual
Features
• Continuous duty, thermally protected - split capacitor motor
• Pumps will lift water up to 25' of vertical height
• Rugged cast iron construction
• Easily handles 2" solids
• Large 2" discharge for high capacity pumping
• Thermoplastic, non-clogging vortex impeller
Technical Specifications
  HP 1/2
  Amps 7.6
  Construction Cast Iron
Switch Type Vertical
  Discharge Size 2"

  Cord Length 25'
  Solids Handling 2"
  Impeller Type Thermoplastic, non-clogging vortex
Switch On Point 9"
Switch Off Point 3"
Warranty 1 Year

Performance
HEAD 0' 5' 10' 15' 20' 25'
GPM 80 68 60 44 13 2
GPH 4800 4080 3600 2640 780 120


Basins

Basin Covers

Alarms

Adapters

Check Valves


Superior Pump Owner's Manual

Every Superior Pump comes with a detailed owner’s manual. The manual includes installation instructions, tips on pump maintenance, special warnings as well as warranty information. It is highly recommended that you read and understand the complete manual.

Click here for a copy of the
93525 manual
.

If you have any questions please contact customer support.
