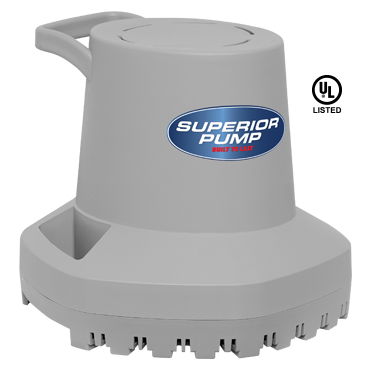

  92395: POOL COVER PUMP
  Thermoplastic Construction
Click on image for high resolution picture
  • Features
  • Specifications
  • Performance
  • Manual
• 2100 GPH @ 0’
• Thermoplastic construction with built-in handles for ease of transport and installation
• 1” NPT discharge
• 3/4” garden hose adapter
• Activates in 1-1/2” of water
• Pumps down to 3/4” of water
• Large base design for added stability
• Bottom screen removes easily for cleaning
• Internal automatic vertical float switch
• Hermetically sealed, oil cooled motor for long pump life
• Clog resistant impeller
• Motor is thermally protected with automatic reset thermal protector
• Energy efficient split capacitor motor. Lower amp draw, runs cooler, lasts longer
• Stainless steel motor shaft
• Carbon/ceramic/stainless steel mechanical shaft seal
• Upper and lower permanently lubricated ball bearings
• Stainless steel fasteners
• Acceptable for indoor or outdoor use
• Compact, lightweight design is easily portable
• Every unit is 100% pressure tested
Motor Specifications
  Voltage 120
  Amps 3.8
  Hertz 60
Phase Single
  RPM 3450
  Motor Type Permanent Split Capacitor (PSC)
  Insulation Class A
  Circuit Requirements 15 amp (mini) individual circuit
  Duty Rating Continuous*
For continuous operation, the water depth must be at least 1-1/2" to prevent the motor from overheating
Shaft Seal Carbon/ceramic and stainless steel
  Motor Shaft Stainless Steel
  Upper Motor Bearing Ball Bearing
  Lower Motor Bearing Ball Bearing
  Cooling Oil cooled
  Motor Protection Auto reset thermal overload protection
Pump Specifications
  Discharge Size 1" NPT & 3/4" Garden hose thread
  Cord Length 25'
  Cord Type SJTW, UL Listed, 3-Wire, 18 gauge
Pump Housing Thermoplastic
  Pump Base Thermoplastic
  Impeller Material Thermoplastic
  Impeller Type Clog Resistant
  Gasket Bruna-N
  Liquid Temp. Range 32°- 120° F
Operation Automatic
  Fasteners Stainless Steel
  Max Flow Rate 35 Gallons per minute
  Maximum Head 25 feet
  Max Pressure 10.8 psi
  Weight 11lbs
Automatic Switch Specifications
  Type Internal SJE Rhombus Vertical Master II
  Switch on point 1-1/2"
  Switch off point 3/4"
Material High impact PVC
Warranty Information
  Warranty 3 Year
HEAD 0' 5' 10' 15' 20' 25'
GPM 35 27 20 17 10 4
GPH 2100 1620 1200 1020 600 240
Superior Pump Owner's Manual

Every Superior Pump comes with a detailed owner’s manual. The manual includes installation instructions, tips on pump maintenance, special warnings as well as warranty information. It is highly recommended that you read and understand the complete manual.

Click here for a copy of the
92395 manual.

If you have any questions please contact customer support.
