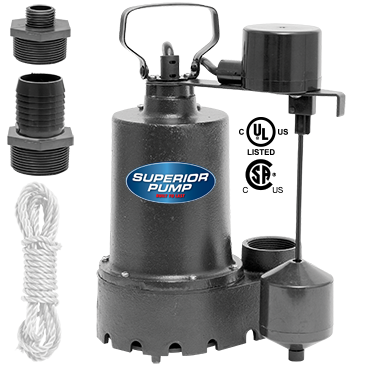

  92349: 1/3 HP SUMP
  Cast Iron Construction


Click on image for high resolution picture
  • Specifications
  • Performance
  • Optional Accessories
  • Manual
Features
• Continuous duty, thermally protected - split capacitor motor
• Pumps will lift water up to 25' of vertical height
• Rugged cast iron construction
• Large 1-1/2" discharge for high capacity pumping
• Can be used as a utility pump by removing the float switch
• 3/4" Garden hose adapter included
• 1-1/2" BARB adapter included
• 25' nylon rope included
Technical Specifications
  HP 1/3
  Amps 4.1
  Construction Cast Iron
Switch Type Vertical
  Discharge Size 1-1/2"
  Discharge Type Side
  Cord Length 25'
  Solids Handling 3/8"
  Impeller Type Stainless Steel
Switch On Point 6"
Switch Off Point 2"
Pumps Down To 3/4" From Surface When Used As Utility
Warranty 3 Year

Performance
HEAD 0' 5' 10' 15' 20' 25'
GPM 46 36 30 25 12 1
GPH 2760 2160 1800 1500 720 60

Battery Backup

Check Valves

Alarm

Basins

Basin Covers

Hose Kit

Adapters

Base

Filters


Superior Pump Owner's Manual

Every Superior Pump comes with a detailed owner’s manual. The manual includes installation instructions, tips on pump maintenance, special warnings as well as warranty information. It is highly recommended that you read and understand the complete manual.

Click here for a copy of the
92349 manual.

If you have any questions please contact customer support.
